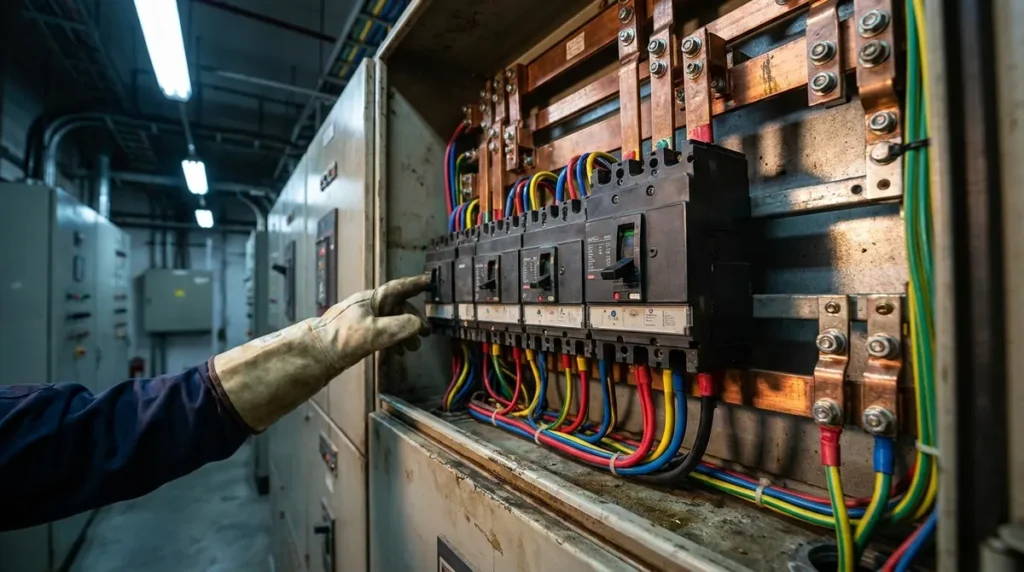

Short Circuit Current Calculator

Use this full-width Short Circuit Current Calculator to estimate available fault current at transformer terminals and at a downstream fault point using transformer impedance, upstream source strength, cable length, conductor size, and fault type. Results update instantly for engineering quick screening, equipment duty review, and scenario comparison.

⚡ Live fault current updates 📏 Downstream cable impedance included 📊 Scenario comparison + chart 🔗 Shareable link restore
Preset state: Commercial LV Panel

System & input section

Three-phase is preferred for breaker duty checks. Line-to-neutral here is a quick engineering approximation only.
Choose a preset family to load practical starting values, then fine-tune as needed.
Enter line-to-line voltage for three-phase systems or nominal system voltage for line-to-neutral quick screening.
The calculator normalizes everything internally to volts.
Use transformer kVA at the calculation bus. For MV screening without a transformer, use a source-equivalent MVA.
1 MVA = 1000 kVA.
Typical LV transformer range: 4% to 8% 6.00%
%
Lower impedance generally means higher available fault current. Use actual nameplate data when available.
Enter upstream symmetrical short-circuit MVA at this voltage level.
Used for impedance split and peak making current estimate 8.0
X/R
Higher X/R increases the asymmetrical peak making duty estimate.
Used only for the line-to-neutral approximation to account for return path effects.

Downstream conductor / cable section

Resistance rises for aluminum and for smaller conductor sizes, reducing remote fault current.
Approximate AC resistance and reactance values are included for quick engineering screening.
Parallel runs reduce impedance approximately in inverse proportion when installed similarly.
Enter one-way cable length from transformer secondary or source bus to the fault point.
The calculator converts length internally for impedance calculations.
Warmer conductors have higher resistance, which lowers available short-circuit current.
This Short Circuit Current Calculator uses typical AC conductor resistance and reactance values for quick screening. For final protection studies and equipment rating verification, use utility, IEC, IEEE, or manufacturer-specific data.

Live Short Circuit Current Calculator results

Available fault current at source / bus
kA symmetrical RMS
Fault current at selected point
kA symmetrical RMS
Estimated peak making current
kA peak duty estimate
Reduction due to conductor path
difference from source / bus level
Copy and share tools include relevant inputs, assumptions, and results.

Summary / interpretation

System condition

Enter practical values to evaluate whether the system behaves like a strong source or a weak source at the selected fault point.

Protection implication

The calculator will indicate whether downstream conductor impedance materially lowers available fault current.

Equipment duty focus

Use the bus/source result for interrupting duty screening and the selected-point result for remote coordination screening.

Smart insights

Transformer contribution

Transformer impedance often dominates LV bus short-circuit current when the upstream source is stiff.

Cable contribution

Longer cable runs and smaller conductor sizes reduce remote fault current and may affect device sensitivity.

Peak duty

X/R ratio influences the estimated asymmetrical peak duty, which matters for making capacity checks.

Recommendations

Design action

Use actual nameplate transformer impedance and utility short-circuit data for design freeze and procurement stages.

Protection action

Verify that the selected protective device can both interrupt the bus fault level and detect reduced downstream fault current.

Study action

For final studies, include motors, arc-flash assumptions, conductor layouts, and device time-current characteristics.

Comparison / scenario analysis

These live scenarios show how the available short-circuit current changes between the source/bus, the current selected distance, and double that distance.

At source / bus

At current selected distance

At double distance

Formula section

Zbase = V² / S
Ztr = (Z% / 100) × (V² / Str)
Zsource = V² / Ssc
I3φ = VLL / (√3 × |Ztotal|)
I1φ approx = VLN / |Zsource+tr + k × Zcable|
Ipeak ≈ κ × √2 × Isym, κ ≈ 1.02 + 0.98 × e(-3 / X/R)

Visual section

Available fault current Estimated peak current Scenario comparison

Input snapshot

Voltage: —
Transformer / source: —
Impedance: —
Cable path: —
Fault type: —
Upstream fault level: —
```

Why the Short Circuit Current Calculator Is Useful

The Short Circuit Current Calculator is useful because short-circuit levels directly affect equipment selection, protection coordination, cable stress, switchgear duty, and overall electrical safety. In real projects, engineers, technicians, contractors, and maintenance teams often need a quick but technically sensible way to estimate available fault current before doing a full detailed study. A Short Circuit Current Calculator helps users move from guesswork to structured screening in seconds.

Whether you are checking a low-voltage panel, reviewing a transformer-fed distribution board, examining a workshop feeder, or screening an industrial circuit, the Short Circuit Current Calculator gives a practical first estimate of bus fault current, remote-point fault current, and peak making current. That matters because too much fault current can exceed the interrupting duty of protective devices, while too little remote fault current can create sensitivity problems for downstream protection.

⚡ Quick value: A good Short Circuit Current Calculator helps you compare “strong source” and “weak source” conditions without manually rebuilding the full impedance chain each time.

What the Short Circuit Current Calculator Does

The Short Circuit Current Calculator estimates the available fault current at the source or bus and then evaluates how conductor impedance reduces that current at a selected downstream point. In practical terms, the tool combines transformer impedance, upstream source strength, conductor material, cable size, cable length, parallel runs, and X/R ratio to show how the fault level changes across the system.

A well-built Short Circuit Current Calculator is more than a simple current formula. It lets users test different assumptions live. You can compare copper and aluminum conductors, short and long cable runs, stronger and weaker utility sources, and lower and higher transformer impedance. This makes the Short Circuit Current Calculator helpful not only for design checks but also for training, troubleshooting, and proposal review.

Because the tool responds instantly, users can explore multiple scenarios on the same page and better understand which input is controlling the result. That improves confidence and keeps users engaged longer than a static formula sheet.

How the Short Circuit Current Calculator Works

The Short Circuit Current Calculator follows a practical Thevenin-style quick-screening approach. First, it converts the source and transformer data into equivalent impedance. Then it adds conductor resistance and reactance to represent the path from the source to the fault point. Finally, it divides the system voltage by the total impedance seen by the fault. This is why the Short Circuit Current Calculator can show both bus fault current and the lower fault current available at a remote location.

1. Source strength → stronger upstream fault level means lower source impedance.

2. Transformer impedance → lower %Z usually means higher available fault current.

3. Cable impedance → longer distance and smaller conductor size reduce remote fault current.

4. X/R ratio → affects the peak making current estimate used for switching duty awareness.

That is why the Short Circuit Current Calculator is especially useful for live scenario testing. You can instantly see how a single change shifts the engineering picture.

Formulas and Calculation Logic Behind the Short Circuit Current Calculator

The Short Circuit Current Calculator is based on standard short-circuit screening logic commonly used in preliminary design work. A typical base relationship is impedance from voltage and apparent power. Transformer impedance is estimated from the transformer percent impedance and rating, while source impedance is estimated from available short-circuit MVA. These are then combined with conductor resistance and reactance to get total fault-path impedance.

Zbase = V² / S

Ztr = (Z% / 100) × (V² / Str)

Zsource = V² / Ssc

I = VLL / (√3 × |Ztotal|)

Ipeak ≈ κ × √2 × Isym

The Short Circuit Current Calculator is intended for engineering quick screening, not final certified protection studies. For formal work, users should align assumptions with international practice such as IEC short-circuit methods and good engineering guidance from IEC publications, utility data, and manufacturer documentation.

How to Interpret Results from the Short Circuit Current Calculator

The most important job of the Short Circuit Current Calculator is not just to produce numbers, but to help users interpret those numbers correctly. Start with the source or bus fault current. This value is important for checking switchgear interrupting duty and equipment withstand. Then look at the selected-point fault current. This value shows how much the cable path reduces the available fault level at the actual fault location.

If the difference between source and remote-point current is small, the system behaves like a stiff source with limited conductor impact. If the reduction is large, the feeder impedance is significant and downstream protection sensitivity deserves closer attention. The Short Circuit Current Calculator also shows peak making current, which helps users remember that asymmetrical duty can be much higher than symmetrical RMS current.

⚠ Interpretation tip: A lower remote fault current does not automatically mean “safer.” It may create pickup and coordination concerns for protective devices if the device does not see enough fault current at the farthest point.

Practical Examples and Real-Life Use Cases for the Short Circuit Current Calculator

A practical Short Circuit Current Calculator is valuable in many environments. In a home workshop or small commercial building, it helps screen a transformer-fed panel before choosing breakers and checking feeder lengths. In an office project, the Short Circuit Current Calculator helps compare panel locations and conductor sizes. In an industrial facility, it helps engineers understand the effect of long cable routes, multiple parallel runs, and motor-control-center locations.

Example one: a 415 V system with a 1000 kVA transformer and short copper feeder may show a high bus fault current with only a small reduction at the panel. Example two: the same system with a much longer aluminum feeder may show a noticeably lower remote fault current. Example three: an 11 kV feeder with a strong source may still experience meaningful reduction at the remote point due to conductor impedance. Each of these cases becomes faster to visualize with a Short Circuit Current Calculator.

For users exploring similar tools, this engineering category page is also useful: Engineering Calculators.

Common Mistakes to Avoid When Using the Short Circuit Current Calculator

Even a strong Short Circuit Current Calculator can be misused if the input assumptions are wrong. One common mistake is confusing volts and kilovolts. Another is entering transformer power in the wrong unit. Users also sometimes forget that longer cable length means lower remote fault current, or they ignore temperature effects and conductor material. If copper and aluminum are mixed up, the Short Circuit Current Calculator will still run, but the engineering conclusion may be poor.

Another mistake is treating quick-screening output as final protection-study data. The Short Circuit Current Calculator is excellent for screening, comparison, and early decisions, but final settings and certified equipment checks should be confirmed using detailed study methods, accurate impedances, and actual device curves. It is also important not to ignore ground-return assumptions when line-to-neutral or ground-related screening is performed.

Why the Short Circuit Current Calculator Is Better Than Manual Calculation

Manual short-circuit screening can be done, but it is slow, repetitive, and easier to get wrong under project pressure. A Short Circuit Current Calculator removes repeated conversion work, quickly compares scenarios, and helps users focus on engineering interpretation instead of arithmetic. That saves time, reduces review effort, and improves decision quality.

The Short Circuit Current Calculator also improves efficiency because users can test multiple scenarios on one page: shorter or longer feeder, smaller or larger cable, stronger or weaker source, and lower or higher transformer impedance. This makes the Short Circuit Current Calculator helpful for cost control as well. If a design is clearly overbuilt or underperforming, the trend becomes visible early, which can lead to better equipment choices and fewer revisions later.

✅ Final tip: Use the Short Circuit Current Calculator several times with different conductor lengths, parallel runs, and transformer impedances. That quick what-if testing often reveals the most important design driver faster than a single static calculation.
